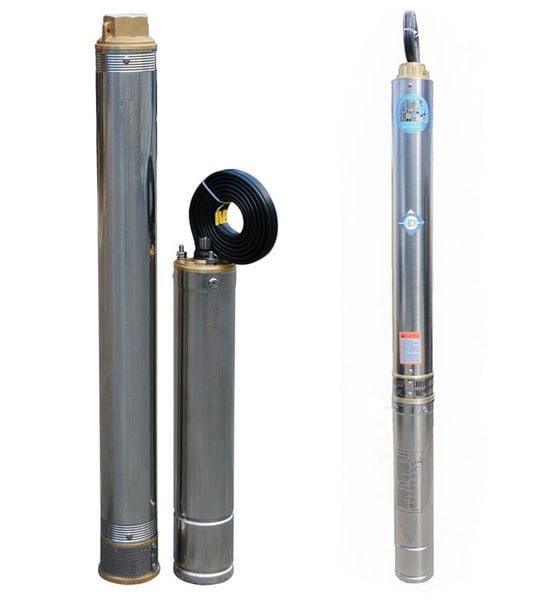

GALAXY 4GLX – 3/4HP/220V

Rocket Pumps – Submersible borehole Pumps – Water pumps- Galaxy 4-inch Rocket Pumps.

Diameter: 4 inch

Electricity supply: 220V ; 1Fa

Capacity: 3/4HP

Structure: stainless steel pump body, plastic wings, brass pump head.

Vendors:

Saving up to 25% on electricity

Hotline: 1900 066 667

Galaxy rocket pumps 4GLX – 3/4HP Diameter: 4 inches PVC swingwheel with brass stand


Type of wingsCapacitySewer PipesWater-flow and pressur
HP – VOLKW
4GLX-3/103/4HP – 220V 0.55KWØ492.4m³/54m3.6m³/40m4.8m³/15m
4GLX-4/8 0.55KWØ493.6m³/43m4.8m³/32m6.0m³/18m
4GLX-6/7 0.55KWØ494.8m³/34m7.2m³/23m8.4m³/15m

Products:

– Components are imported and assembled at Tan Huynh Chau Co., Ltd

– The pump body is made of 304 stainless steel

– The modern technology and saving-electricity engine.

– The pump wings are made of industrial plastic yarns

– Durable, friendly and safe for the user

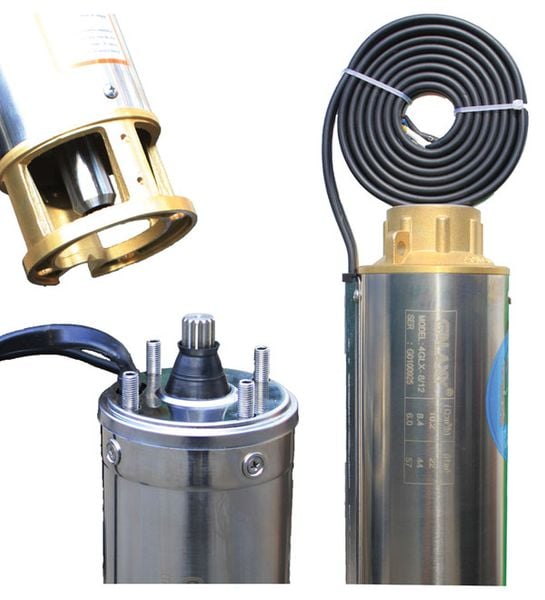

Structure and packaging:

– Consists of 2 parts: Electric motor and pump motor are assembled into the machine.

– Diameter of pump body: 96 mm

– The length of the pump body depends on capacity and pump motor.

– Packaged by thick and durable carton.

Operating conditions of Galaxy rocket pumps:

– Clean water, solids with a particle diameter is not greater than 0.5 mm

– Temperature is below <40 ° C. PH concentration is from 6.5 → 8.5

– Wells with a diameter of 114 or more
